Linear Tube Audio AERO DAC
Linear Tube Audio AERO DAC
Couldn't load pickup availability
-
R2R Ladder DAC: No oversampling and no digital filters for organic sound
-
Class-A ZOTL Output Stage: The first and only DAC in the world to use ZOTL technology
-
Zero Negative Feedback: No global or local feedback for timbral accuracy and enhanced transient response
-
Isolated Power Rails: Dedicated power supplies for each section for precise electrical isolation
-
Advanced Protection: Circuitry to protect downstream components from tube failures
-

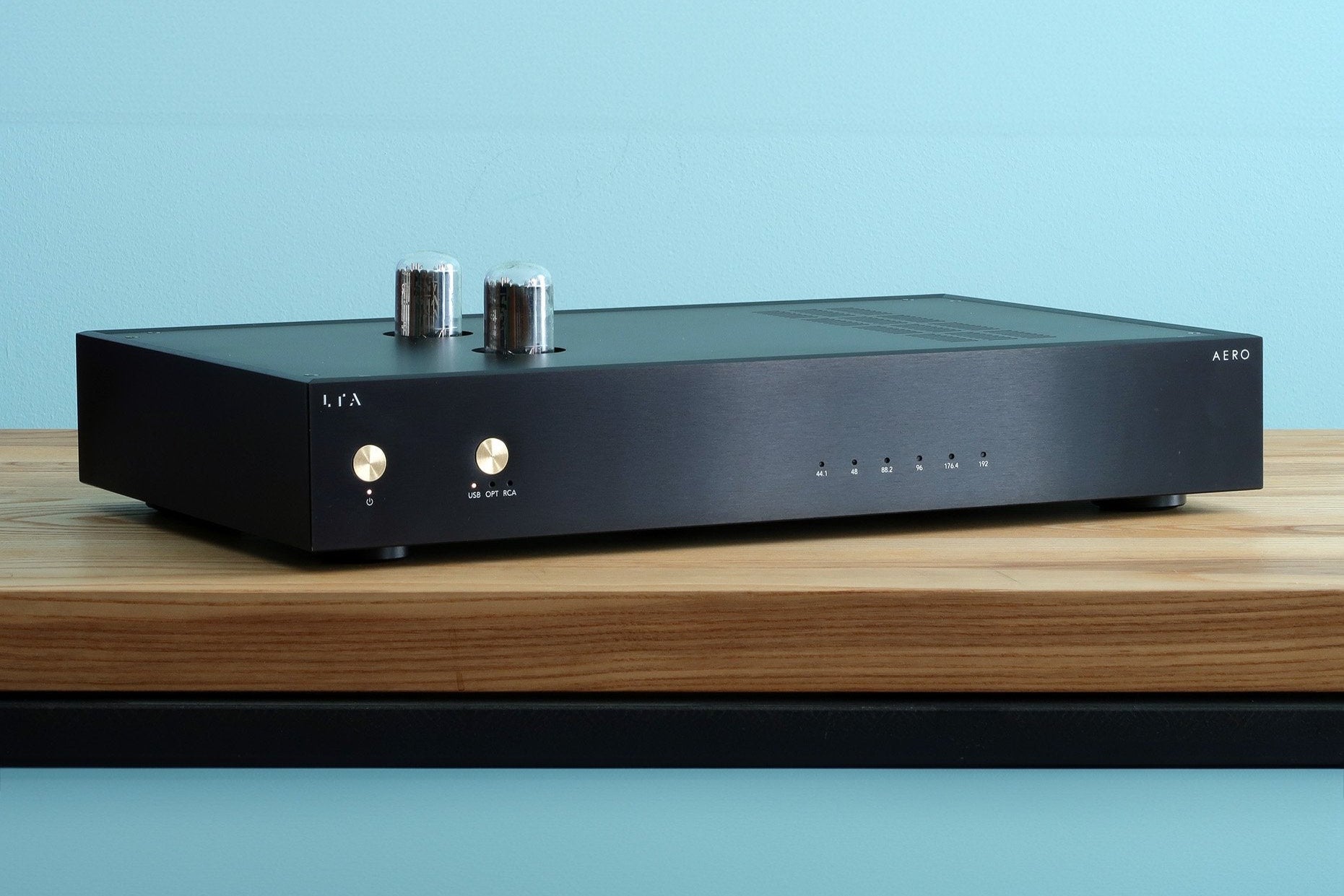

Easy Tube Swapping: Fully visible tubes and simple toggle switch for using either 6SN7 or 12SN7 output tubes
-
Balanced XLR Outputs: Enhanced signal quality and crystal clear audio
-
Three Inputs: USB, Optical, and Coax inputs for flexible connectivity
-
Direct-Coupled Topology: No capacitors in the signal path
-
Plug & Play: No drivers needed for Windows or Mac
-
Advanced Power Regulation: Belleson-regulated, multi-stage choke filtration for clean power
-
Digital Galvanic Isolation: Blocks noise from music sources entering the DAC circuit
-
Made in the USA: Designed and built in our Takoma Park, MD workshop
-
Roon Tested: Certified integration with Roon for easy plug-n-play setup
Specifications
-

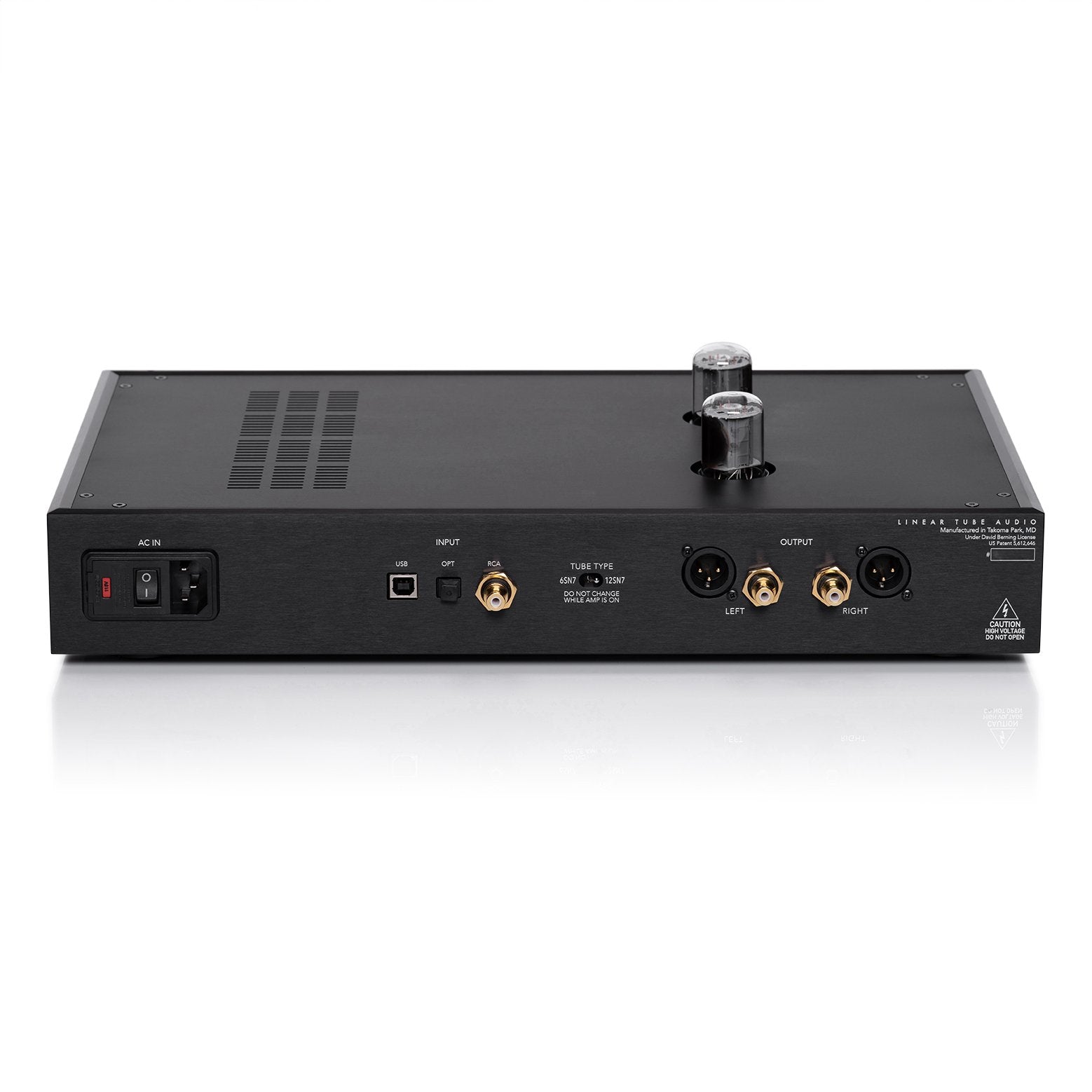

Inputs: USB, RCA Coax, Toslink / Optical
-
Outputs: RCA (70 ohm), XLR (140 ohm)
-
Formats: Up to 24-bit / 192 kHz PCM
-
DAC: Analog Devices AD1865 R2R
-
Output Voltage:
-
RCA: 2.2 Vrms
-
XLR: 4.4 Vrms
-
-
THD+N:
-
RCA: 0.54% at 1.1 Vpeak.
-
XLR: 0.061% at 2.2 Vpeak
-
-
Hum:
-
RCA: -110dB at 1.1 Vpeak
-
XLR: -116dB at 2.2 Vpeak
-
-
Frequency Response: -0.3dB at 20Hz and -0.8dB at 20kHz
-
Tube Complement: 2 x 12SN7 (6SN7 tubes can also be used)
-
Power Consumption: 32W (Standby: 7W)
-
Dimensions:
-
Width: 17in
-
Depth: 10in (10.5 in including connectors)
-
Height: 3in (not including tubes), ~4.5in (with stock tubes installed)
-
-
Weight: Approx 15 lbs
