Hana

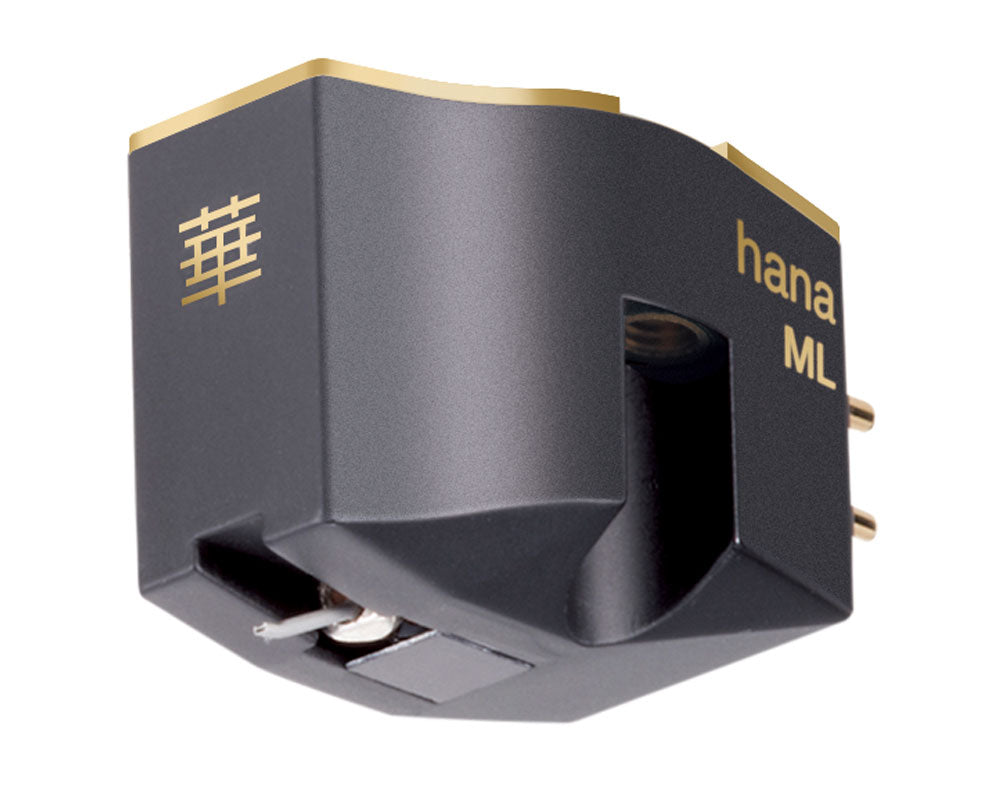

Hana ML

Hana ML

Regular price $1,200.00 USD
Regular price Sale price $1,200.00 USD
Sale Sold out

Building upon the foundation of the critically acclaimed HANA sound, the ML aspires toward affordable perfection and represents the further evolution of the “Brilliant and Gorgeous” quality that has earned HANA its worldwide reputation.

M Series Nude Microline stylus – Higher Specification Part

Befitting its name, the M Series uses a Nude Microline stylus, mimicking the cutting stylus and fitting more precisely into the vinyl groove. This enhances tracking to capture the most delicate musical details with better frequency reproduction, stereo imaging, and resolution.

High Purity copper wire – Higher Specification Part

The coil of the ML's new low-impedance generator—the same generator used in the Hana Umami Blue—is wound with a very high-purity copper wire. Implementing the new generator optimizes performance and provides superior matching with a broader range of phono preamps.

Delrin© cartridge body – Advanced Materials

The M Series cartridge body is injection molded from Delrin©, a high-tech polymer with improved mechanical characteristics for better resonance damping, to reveal more low-level information and enhance dynamic range.

Cryogenic Processing - Unique Technical Treatment

Cryogenic processing is Cold Annealing at near absolute zero temperature that restructures metals at the molecular level, especially important in the Alnico-based magnetic electro-motive circuit (cartridge signal generator). The M Series parts treated include the front yoke as well as the center and rear components. The result is a more precise and controlled magnetic flux field for greater linearity and musical sound quality.

Brass Cap with Threaded fittings - Superior Mechanical Interface

The Delrin© cartridge body features a machined brass cap providing constrained mode layer damping and its heavier 9.5 gram weight provides expanded compatibility with a wider range of tonearms and turntables.

Built into the M Series Delrin© cartridge body are metal threaded fittings for headshell mounting hardware, offering easier attachment and a superior mechanical interface for better bass and dynamics.

Specs

Stylus Microline
Cantilever Aluminum
Magnetic Circuitry Pure Iron/Cryo Treatment
Coil Wire High Purity Copper
Cartridge Housing POM (Delrin) / Brass
Output Level 0.4mv/1kHz
Output Balance <1dB/1 KHz
Trackability 70 µm/2g
Channel Separation 30dB/1kHz
Frequency Response 12-45,000Hz
Impedance 8Ω/1kHz
Suggested Load Impedance >100Ω
Magnet Alnico
Vertical Tracking Force 2g
Cartridge Weight 9.5g
Height 16.3mm
Body Color Black w/Brass Plate
Warranty 2 years
Spec Sheet **DOWNLOAD**
