Gold Note Mediterraneo
Gold Note Mediterraneo
BEAUTY AND TECHNICAL PERFECTION COMBINED FOR MUSICAL PLEASURE
THE TRUE HIGH-END ANALOGUE SOLUTION MADE IN ITALY
Inspired by our Italian heritage, the Mediterraneo turntable combines beauty and technical perfection into a unique instrument for musical pleasure. It is our own ode to musical passion and dedication to vinyl.

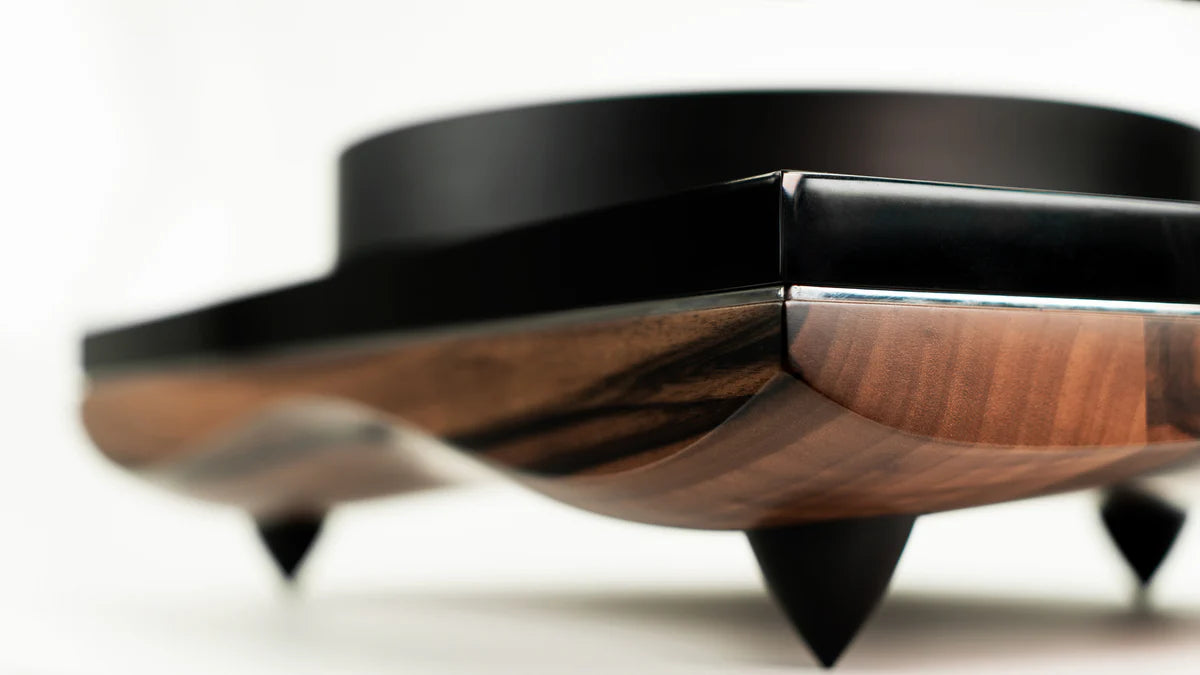

The 60mm thick curved plinth design is based on the Catenary curve, a highly efficient concept developed by the Renaissance pillars, Michelangelo Buonarroti and Galileo Galilei.
Made of Italian walnut hardwood, the chassis benefits from the quality of such noble material: exceptional elasticity, strength, and high density.
The triple plinth structure is reinforced by a compelling 20mm board in polished acrylic and a 3mm thick stainless steel board to improve its exceptional damping quality and stability.
The wooden base sits on three elegantly shaped and adjustable spikes made of anodised aluminium.
SUPERIOR SOUND QUALITY
The 45mm thick high-precision platter made of high-density POM is belt-driven and powered by a proprietary control system developed on a Quadral-Core micro-controller enhanced by an audio converter. The power control rebuilds the AC wave to perfectly drive the 12V synchronous motor, removing vibrations while improving its torque, to deliver the greatest dynamic and the finest detail.
The Power Supply Unit electronically controls the 33⅓rpm and 45rpm modes as well as the fine speed adjustment, storing all settings in memory. The Mediterraneo features an 80mm long bearing/spindle design, made of the hardest rectified carbon steel to achieve perfect working fluidity. The bearing system is made of bronze guaranteeing the smoothest platter rotation.
TECHNICAL SPECIFICATIONS
WOW & FLUTTER
0,1%
RUMBLE
-80db
SPEED
33⅓rpm and 45rpm ±0,1%
SPEED CHANGING
Electronic with fine pitch control
TRANSMISSION
70 shores rectified EPDM belt
MOTOR
High torque 12V synchronous
PLATTER
45mm thick high-density POM
PLATTER SPINDLE
Split-Spindle™ clamping design
PLATTER BEARING
Tungsten 5mm ball bearing
TONEARM
Gold Note B-7 Ceramic (or opt. B-5.1)
DUST COVER
Transparent acrylic with hinges
POWER CONSUMPTION
max 27W
POWER SUPPLY
PST-1
18V output
100-240V / 50-60Hz
DIMENSIONS
470mm W | 210mm H | 360mm D
590mm W | 510mm H | 510mm D – boxed
WEIGHT
Kg. 20 – net
Kg. 26 – boxed
ITALIAN WALNUT HARDWOOD
With black polished acrylic upper plinth, black anodized aluminium metal parts and black platter
