Gold Note
Gold Note CD-10
Gold Note CD-10
Couldn't load pickup availability

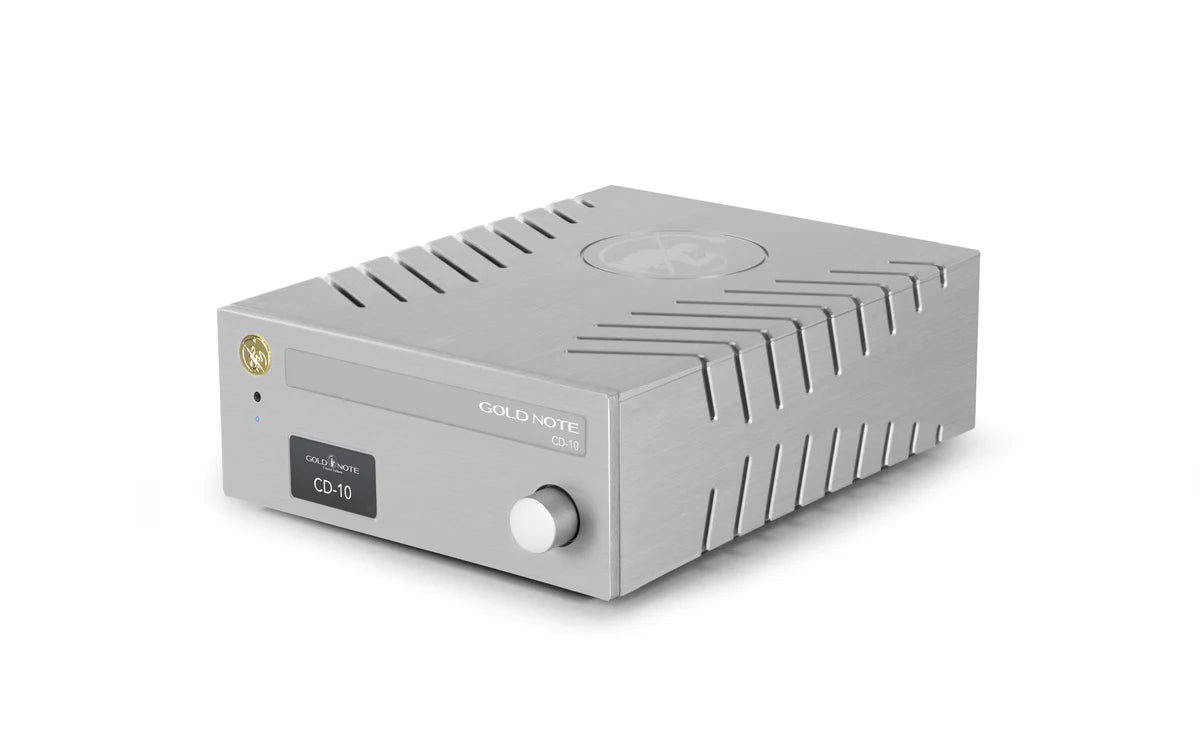

High Performance CD Player

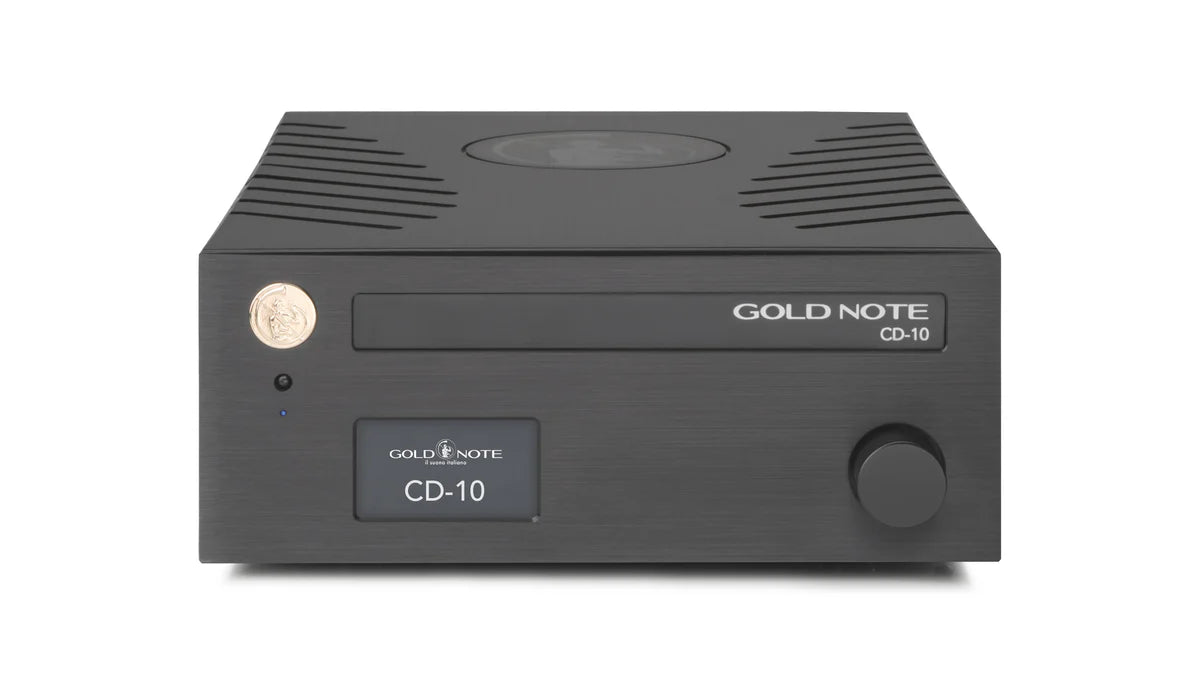

The CD-10 is the CD player of the 10 Series engineered with the high-quality audio grade components. The CD mechanism is made in Austria by Stream Unlimited and it’s specifically designed for High-End audio applications requiring a high-precision laser. The D/A converter is the AK4493, made in Japan by AKM to provide an incredible level of details and musicality, and supporting up to 24bit/192kHz. The touchscreen display is ultra clear and the menu can be easily browsed using the knob, the touchscreen and the remote (included).
SPECIFICATIONS
CD-PLAYER
CD Player with DAC
D/A CONVERTER
AKM AK4493
FREQUENCY RESPONSE
20Hz-20kHz @ ± 0.3dB
THD – TOTAL HARMONIC DISTORTION
0.001% max
SIGNAL TO NOISE RATIO
128dB
DYNAMIC RESPONSE
127dB
OUTPUT IMPEDANCE
100Ω

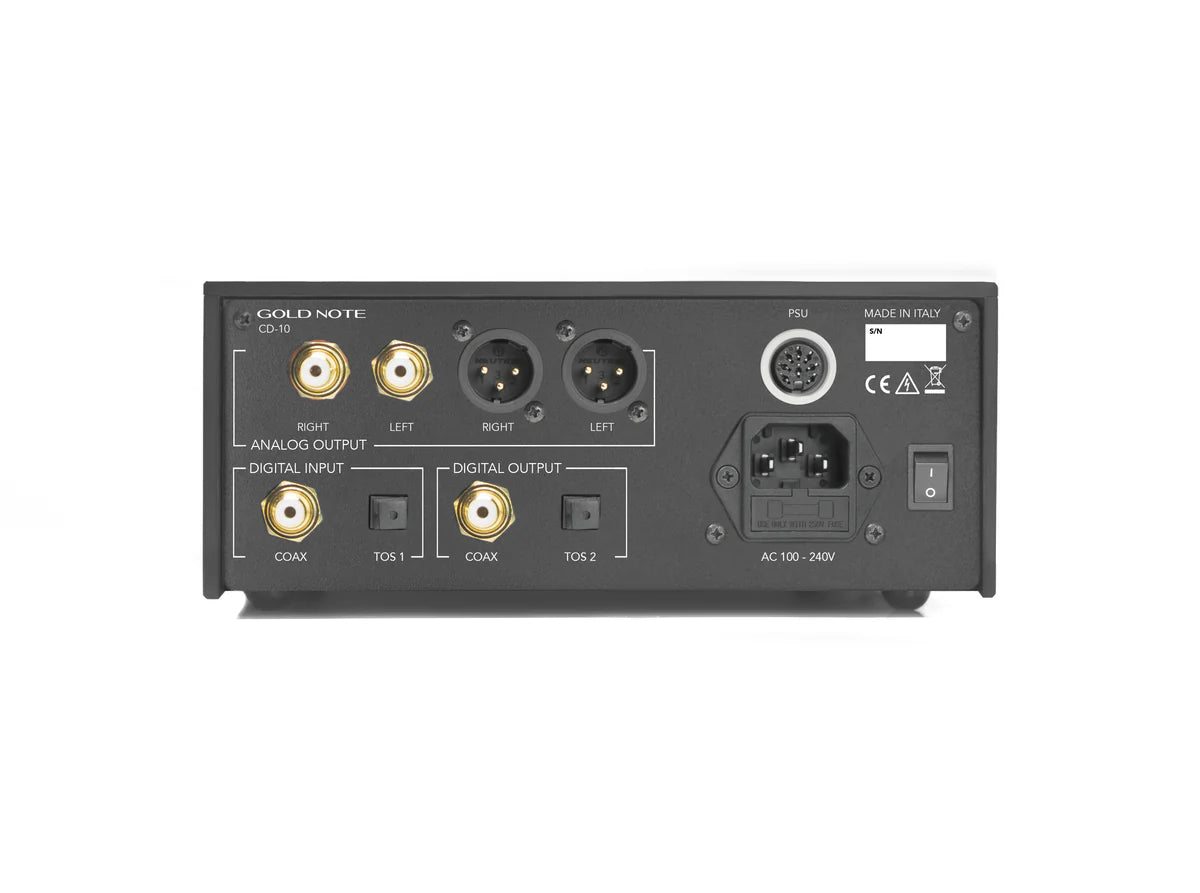

DIGITAL INPUTS
1 x COAX S/PDIF (24bit/192kHz)
1 x TOS (24bit/192kHz)
DIGITAL OUTPUTS
1 x COAX S/PDIF 75Ω (24bit/192kHz)
1 x TOS (24bit/192kHz)
ANALOGUE OUTPUTS
1 x RCA 2Vrms
1 x XLR 2Vrms
VOLUME CONTROL
Digital, switchable ON/OFF (OFF by default)
MECHANISM

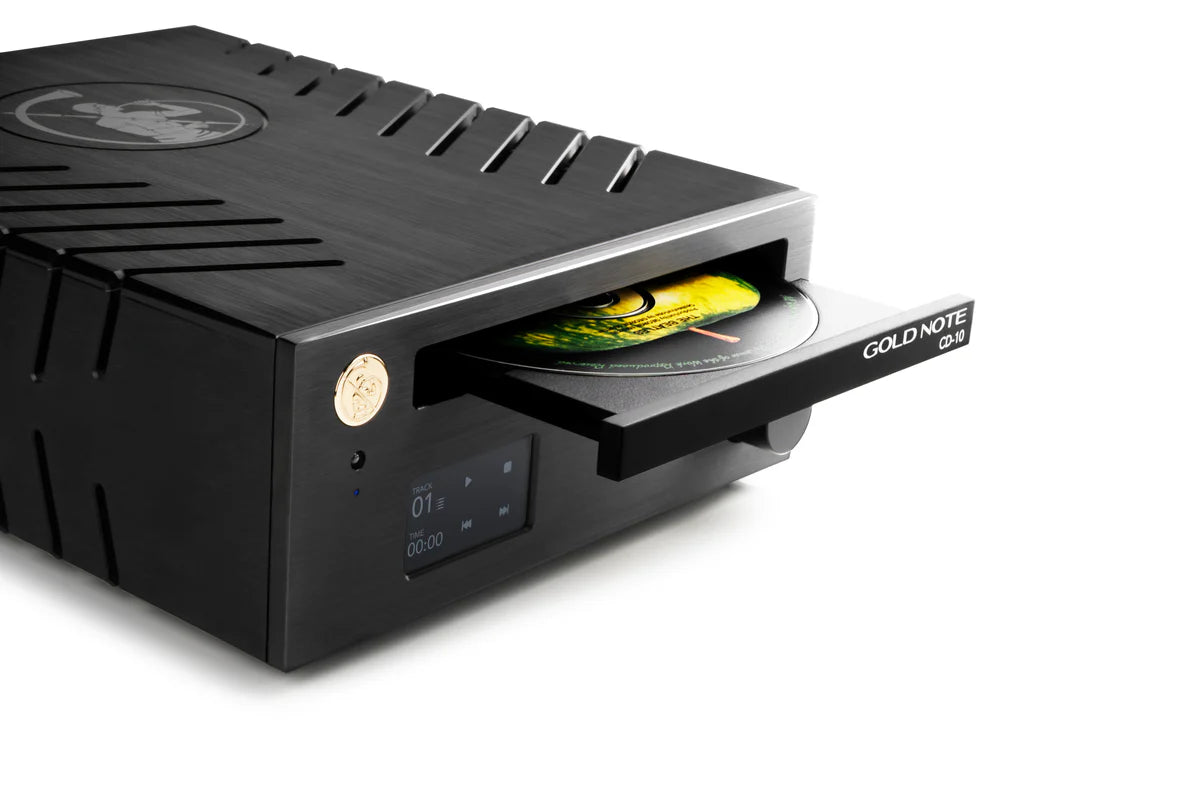

Tray loader by Stream Unlimited (SUOS-Hifi)
SPEED FLUCTUATION
0.0001%
FORMATS
CD formats: Red Book
Disc compatibility: CD, CD-R, CD-RW
REMOTE CONTROL
Multifunctional remote control
POWER
Power supply: 100-240V, 50/60Hz
Power consumption: 30W
Fuse: 2A T
DIMENSIONS AND WEIGHT
Dimensions: 200mm L 80mm H 260mm D
Weight: 4Kg net, 5Kg boxed
UPGRADES:
EXTERNAL POWER SUPPLY PSU-10 EVO: INDUCTIVE DUAL-MONO POWER SUPPLY
